Product Description

INVERTER
MERGENCY POWER SYSTEM (EPS)

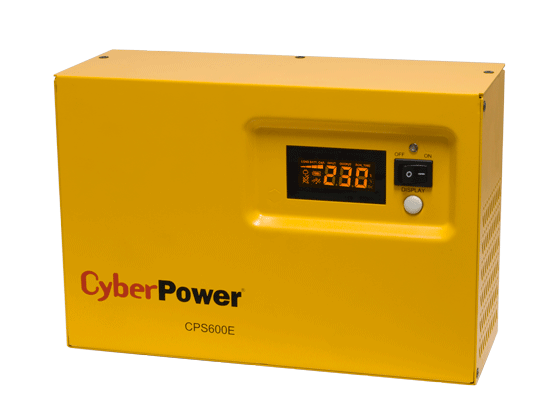

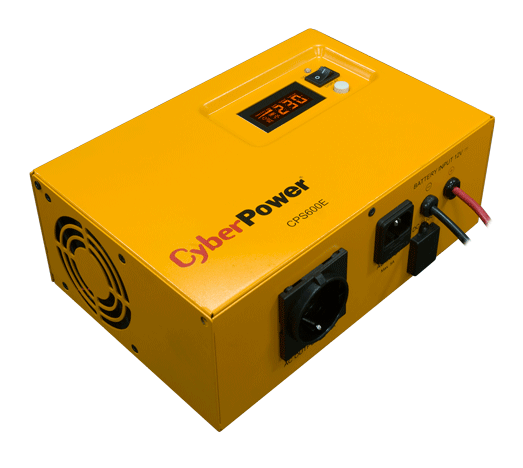

Model : CPS600 PIE

AVR   AUTOMATIC VOLTAGE REGULATOR
Pure Sine Wave Power Systems Output
1 phase in-1 phase out
600 VA

Product Information

CyberPower Inverter/ Emergency Power System (EPS) utilize state-of-art Microcontroller technology for the supply of lighting, generator, heater, refrigerator, motor, and other apparatus to provide resources during crisis or failure of regular systems. Pure Sinewave output with the adjustable AVR feature is highly flexible to supply continuous power to various types of loads under all kinds of environments. The large LCD panel showcases comprehensive information including load level, battery level, voltage and other vital equipment status with a push-of-a-button.
The competitive design has not only make it the best choice generators but flexible enough to be adopted as UPS for computers and other sensitive equipments

.

Benefits

Noiseless, Fuel and Maintenance Free
High Charging Current for Quick Recharging- Up to 5 imes faster
Bypass Mode Allows for Charge Only
Generator Compatible Allows Longer Runtime
UPS Function for Auto Changeover
Affordable DC Input Voltage- Minimum 12V battery required
Automatic Voltage Regulator(AVR)
Brownout and Over Voltage Protector
Small & Light in Dimension
Reverse Polarity Warning


Loading Runtime

Battery Model 100Ah/12V
Model Name Loading (R) Runtime in hours (hr)
CPS600E   100Ah/12V X1 25% 7
50% 3.5
75% 1.5
100% 1
600VA CYBERPOWER INVERTER LOAD RUNTIME IN HOURS USING 12V 100AH BATTERIES

Technical

Documentation

Model CPS600E
Capacity (VA / Watts) 600VA / 420W
Input
Voltage Range 140Vac - 300Vac
Frequency Range 45Hz - 65Hz (Auto Sensing)
DC Input Voltage 12V
Battery Pack Expansion -
Output
Number of Phase Single Phase
UPS Outlets (Numbers) (1) Schuko or (1)FR
On Battery Output Voltage Pure SineWave* at 220Vac +/- 5%
On Battery Output Frequency 50 / 60 Hz +/- 1%
Over Voltage Protection Surge to 400V
Transfer Time < 10 ms
Overload Protection* On Utility: Fuse
On Battery: Internal Current Limiting
AVR Single Boost & Single Buck
Charging Current 10Amps
Manual Switch mode -
Surge Protection and Filtering
Lightning / Surge Protection Yes
Physical
Dimensions(H x W x D)(mm) 162 x 240 x 90
Weight (kg) 4.1
Wheels -
Status Indicators
Indicators Power On
Audible Alarms On Battery, Low Battery, Overload
Multi-function LCD Readout Yes
Communication
PowerPanelR Software -
Management
Connectivity Ports -
SNMP/HTTP Capable -
