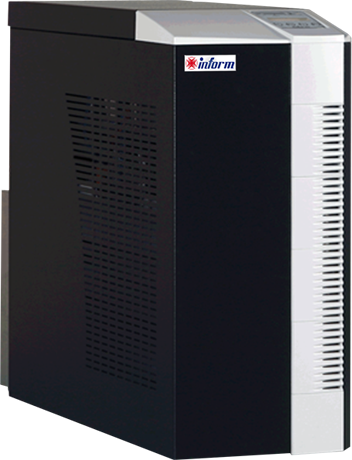

BATTERY CHARGER
Model : ICH
BATTERY CHARGER DC POWER SUPPLY
25Amp to 200Amp
DC Power Supply Operation Mode
If the equipment is being ordered as DC Power Supply, then the unit supplies a limited voltage and
current value that is adjusted from the front panel to the connected DC load. The output voltage and
current limits can be easily adjusted separately from the SETTINGS menu on the LCD panel.
Battery Charger Operation Mode
The equipment that is ordered as battery charger has the following specifications. This operation mode
has 4 graduated charging level depending on the battery type. These are initial charge, float charge, boost
charge and temperature or auto controlled charging types. The charge voltages per cell ;
for initial charge: 2.04V, for float charge: 2.23V, for boost charge: 2.375V, for temperature controlled
charge ; 2.17V at 00C / 2.29V at 500C. These are factory set values, and temperature controlled values can
be set from front panel according to the battery type.
LVD ( Low Voltage Disconnector ) can be included to the unit as an option. This function protects the
batteries from deep discharge by disconnecting them from output during battery mode when the mains is
absent.
Additionally, the dry contact alarm card is an optional feature with its automation functionality.
DSP ( Digital Signal Processor ) Controller
IGBT Technology Transformerless Design
Operation according to constant voltage and current principle
Adjustable Boost and Nominal Charge Voltage
Adjustable Output Current
High Voltage Protection
Over Current Protection
Short Circuit Protection
Over Temperature Protection
Input Filter
Alphanumerical LCD Display and Control Panel
Low DC Voltage Protection (LVD)- Optional
Dry Contact Alarms- Optional
Parallel Connection Availability- Optional
Small Footprints, Compact Size
